Hot Rolled Grade 304 Stainless Steel Sheet DIN 1.4301,Thickness
3mm-6.0mm
Grade: stainless steel sheet
Thinckness: 3-6mm , 6-14mm 15mm
Tolerance: +/- 0.02mm
Width: 1240mm ,1500mm , 2000mm or as customized
Length: 2000mm , 6000mm or as customized
Mill name : LISCO ZPSS Tsingshan TISO
Price time: FOB , CFR , CIF, CNF
Payment : 30% T/T in advanced+70% balanced ; irrevocable L/C at sight
Application of 304 Material Grade DIN 1.4301
304: Architecture, Decoration, Chemical industry, Food processing
equipment, Medicine, Fiber industry and Auto components.

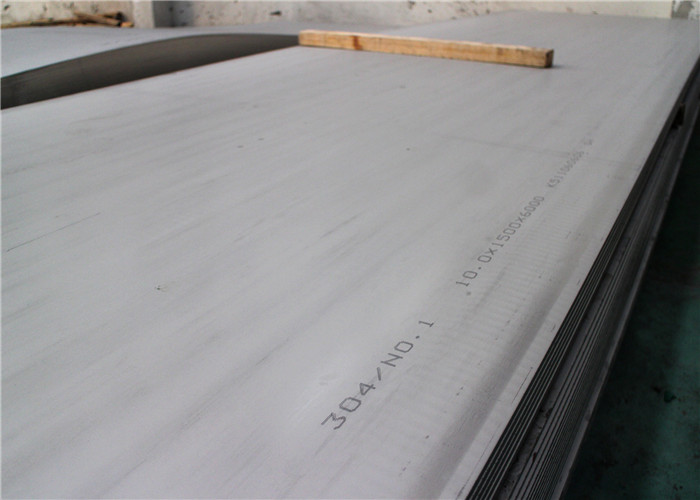

304 Stainless Steel sheet
| 304 stainless steel sheet Chemical composition: |
| C | Si | Mn | Cr | Ni | S | P |
| ≤0.07 | ≤1.0 | ≤2.0 | 18.0~20.0 | 8.0~11.0 | ≤0.03 | ≤0.035 |
| 304 stainless steel sheet mechanical properties: |
| Tensile strength σb (MPa) | Conditions yield strength 0.2 sigma (MPa) | Elongation δ5 (%) | Section shrinkageψ (%) | Hardness |
| 520 | 205 | 40 | 60 | ≤187HB ≤90HRB ≤200HV
|
Hot-Rolled Stainless Steel Plate:
Continuous casting slab or slab slab is used as raw material,
heated by step heating furnace, dewatered by high pressure water
and then into rough rolling mill.
The rough rolling material passes through the cutting head and tail
and then enters the finishing mill to carry out computer controlled
rolling. After the final
rolling, it is subjected to laminar cooling (computer controlled
cooling rate) and coiler winding, which becomes a straight hair
roll. The head and tail of the straight hair roll are often in the
shape of a tongue and a fishtail. The thickness and width are
poorly accurate, and the side has frequent defects such as a wave
shape, a folded edge, and a tower shape. The weight of the coil is
heavier and the inner diameter of the coil is 760 mm.
| Hot rolled plate |
|---|
Specification
(Thick) | Big Deviation | Normal Deviation | Small Deviation | No Deviation |
|---|
| 3.0mm | 2.6mm-2.75mm | 2.75mm-2.85mm | 2.86mm-2.9mm | no less than 2.9mm |
| 4.0mm | 3.5mm-3.6mm | 3.6mm-3.75mm | 3.76mm-3.95mm | no less than 3.95mm |
| 5.0mm | 4.5mm-4.6mm | 4.6mm-4.75mm | 4.75mm-4.95mm | no less than 4.95mm |
| 6.0mm | 5.4mm-5.6mm | 5.6mm-5.75mm | 5.75mm-5.85mm | no less than 5.85mm |
| 8.0mm | 7.3mm-7.5mm | 7.5mm-7.65mm | 7.65mm-7.85mm | no less than 7.85mm |
| 10.0mm | 9.2mm-9.3mm | 9.3mm-9.6mm | 9.6mm-9.85mm | no less than 9.85mm |
| 12.0mm | 11.1mm-11.2mm | 11.2mm-11.6mm | 11.6mm-11.85mm | no less than 11.85mm |
| 14.0mm | 13.1mm-13.2mm | 13.2mm-13.6mm | 13.6mm-13.85mm | no less than 13.85mm
|
How Can You Ship Goods Like Heavy welded Stainless Steel pipe. What
Is Best Pacakge?

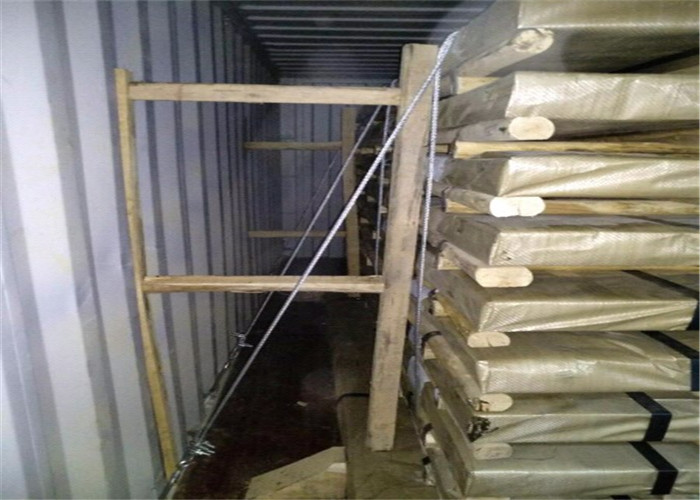

- Packing is quite important especially in a case of international
shipments in which consignment pass through various channels to
reach the ultimate destination, so we put special concern regarding
packaging.
- We pack our goods in numerous ways based on the products. We pack
our products in multiple ways, such as,
- Waterproof paper reinforcement of steel strip
- Kraft paper
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
Is There Any Cutting Or Surface Treatment In Your Company?
We had our own factory to do slitting re-rolling and finish
treatment machine,PVC and interleaving paper we will using with our
machine for you,could protect stainless steel surface from damage
or any scratches,
Water cutting(2.0-200mm 2 Sets)
Laser cutting(1.0-200mm 3 Sets)
Plasma cutting(6-120mm 9 Sets)
Thin plate grinding(0.3-4.0mm 1 Set.)
Surface style:oil grinding NO.4,HL,dry grinding HL
BTY,in 2015,we import one German laser cutting machine,could give
client exact and perfect laser cutting technique,just let me know
your details CAD drawing of stainless steel parts
Factory and Machinery Equipment :
We had our own factory to do slitting re-rolling and finish
treatment machine,PVC and interleaving paper we will using with our
machine for you,could protect stainless steel surface from damage
or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine
WHY US?
Q1. How do you control quality ?
A1: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q2. What are the advantages of your company ?
A2: We have many professionals, technical personnel, more
competitive prices and best after-dales service than other
stainless steel companies.
Q3. How many coutries you already exported ?
A3: Exported to more than 50 countries mainly from America , Russia
, UK , Kuwait, Egypt ,Brazil , UAE , Germany , Dubai , Saudi Arabia
, Iran , Turkey , Jordan , Malaysia , Singapore , etc.
Q4. Can you provide sample ?
A4: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days
