| Hot rolled coil |
|---|
Specification
(Thick) | Big Deviation | Normal Deviation | Small Deviation | No Deviation |
|---|
| 3.0mm | 2.6mm-2.75mm | 2.75mm-2.85mm | 2.86mm-2.9mm | no less than 2.9mm |
| 4.0mm | 3.5mm-3.6mm | 3.6mm-3.75mm | 3.76mm-3.95mm | no less than 3.95mm |
| 5.0mm | 4.5mm-4.6mm | 4.6mm-4.75mm | 4.75mm-4.95mm | no less than 4.95mm |
| 6.0mm | 5.4mm-5.6mm | 5.6mm-5.75mm | 5.75mm-5.85mm | no less than 5.85mm |
| 8.0mm | 7.3mm-7.5mm | 7.5mm-7.65mm | 7.65mm-7.85mm | no less than 7.85mm |
| 10.0mm | 9.2mm-9.3mm | 9.3mm-9.6mm | 9.6mm-9.85mm | no less than 9.85mm |
| 12.0mm | 11.1mm-11.2mm | 11.2mm-11.6mm | 11.6mm-11.85mm | no less than 11.85mm |
| 14.0mm | 13.1mm-13.2mm | 13.2mm-13.6mm | 13.6mm-13.85mm | no less than 13.85mm |
Hot-rolled coil has relatively low strength, poor surface quality (low
oxidation/smoothness), but good plasticity, generally medium and
heavy plate, cold-rolled sheet: high strength, high hardness, high
surface finish, generally thin sheet, can be used as stamping With
the board.
Hot-rolled steel sheet, mechanical properties are far less than
cold processing, second only to forging, but with good toughness
and ductility
Heat Resistance :
Grade 430 resists oxidation in intermittent service up to 870°C and
to 815°C in continuous service. This grade may become brittle at
room temperature after prolonged heating in the 400-600°C range.
This effect can be eliminated by annealing.
| 430 stainless steel chemical composition |
| Grade | C | Si | Mn | Cr | N | P | S | Ni |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 16.00~18.00 | - | ≤0.040 | ≤0.03 | ≤0.60 |
| 430 physical properties |
| 430 | Density : | 7.75g/cm3 |
| Melting point: | 1427℃ |
| Tensile Strength: | σb (MPa)≥450 |
| Yield strength : | σ0.2 (MPa)≥205
|
| 410 Chemical composition: |
| C | Si | Mn | Cr | Ni | S | P |
| 0.15 | ≤1.0 | ≤1.0 | 11.5~13.5 | | ≤0.03 | ≤0.04 |
| mechanical properties: |
| Tensile strength σb (MPa) | Conditions yield strength 0.2 sigma (MPa) | Elongation % (min) | Hardness | | | |
| 260 | 470 | 30 | ≤210HV | | | |
Welding
Excellent weldability by all standard fusion and resistance
methods, both with and without filler metals. Heavy welded sections
in Grade 201 require post-weld annealing for maximum corrosion
resistance.
Machining
Stainless steel tends to work harden if machined too quickly. For
this reason low speeds and constant feed rates are recommended.
Factory and Machinery Equipment :

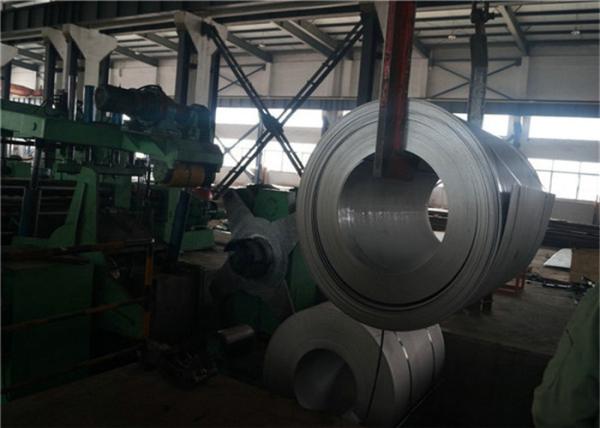

We had our own factory to do slitting re-rolling and finish
treatment machine,PVC and interleaving paper we will using with our
machine for you,could protect stainless steel surface from damage
or any scratches,
1. CNC Flame Cutting Machine
2. CNC Plasma Cutting Machine
3. CNC Laser Cutting Machine
4. Bending Machine
5. Shearing Machine
6. Punch Machine
7. Driving Machine
Packing
waterproof paper and steel strip reinforcement,one package about 2
tons,Load in 20GP / 40GP
WHY US?
Q1. How do you control quality ?
A1: Mill Test Certification is supplied with shipment, Third Party
Inspection is available.
Q2. What are the advantages of your company ?
A2: We have many professionals, technical personnel, more
competitive prices and best after-dales service than other
stainless steel companies.
Q3. How many coutries you already exported ?
A3: Exported to more than 50 countries mainly from America , Russia
, UK , Kuwait, Egypt ,Brazil , UAE , Germany , Dubai , Saudi Arabia
, Iran , Turkey , Jordan , Malaysia , Singapore , etc.
Q4. Can you provide sample ?
A4: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days
