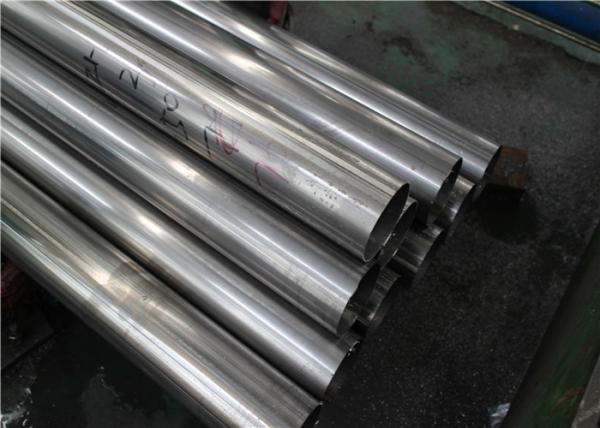

Cold Drawing TP304 Bright Annealed Stainless Steel Welded Pipe
TP304 STANILESS STEEL WELDED PIPE
Type
seamless stainless steel tube , Welded stainless steel tube ,
Spiral stainless steel tube
ERW stainless steel tube , EFW stainless steel tubeLarge caliber
stainless steel pipe ,
Thick walled stainless steel tube , Precision stainless steel tube
Shape : Round , Square, Rectangular, Oval, Hexagonal
Grade
200 Series: 201/202
300 Series: 301/302/303/304/304 L/304 N/309/309 S/310/316/316
L/321/347
900 Series: 904L
Surface :Drawing , Polishing , Anodizing , Coating , Mirror etc...
Standard :GB/T6893-2000,GB/T4437-2000,ASTM B210,ASTM B241,ASTM B234,JIS
H4080-2006,etc
Technique : Hot Rolled , Cold Rolled , Casting , Forging etc.
Certification :ISO , SGS ,BV and so on.
Application :Oil well pipe (casing , tubing and drill pipe , etc.), pipeline ,
boiler tube , mechanical structure pipe ,
hydraulic prop pipe , gas cylinder tube , geological tube ,
chemical pipe
(high pressure chemical fertilizer pipe , oil cracking pipe) and
ship pipe
Data Compare with other grade:
| C | S | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | ≤5.5-7.0 | ≤0.060 | ≤0.030 | 3.50-5.50 | 16.00-18.00 | |
| 202 | ≤0.15 | ≤1.00 | ≤7.50-10.00 | ≤0.060 | ≤0.030 | 4.0-6.0 | 17.0-19.0 | --- |
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00-11.00 | 17.00-19.00 | --- |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00-12.00 | 18.00-20.00 | --- |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 10.00-14.00 | 16.00-18.50 | 2 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 12.00-15.00 | 16.00-18.00 | 2
|
Sino Stainless Steel
Sino Yuan is one of most prominent Stainless Steel Stockholder and
Service Center providing Stainless Steel
to various industries in the region. Sino Yuan's stock holds the
entire range of stainless steel like sheets, coils,
pipes for decoration and industry,round bars in different grades (
304 304L 316 316L 321 310S 309S 310S
2205 904L)
and sizes specially stocked to meet the local industrial demands as
well as the International Mraket.
Specifications data of stainless Steel Welded Pipe:
| Size (mm) | Quantity | Size (mm) | Quantity | Size (mm) | Quantity |
| 6-12×1.5-2.5 | 18 | 73×4-4.5-5-6-7-8-9-10-12-15
| 50 | 219×30-40 | 65 |
| 14×1.5-2.5-3 | 20 | 76×4-4.5-5-6-7-8-9-10-12-14
| 60 | 245×8-10-14-17-20-22 | 105 |
| 16×1.5-2.5-4 | 30 | 83×4.5-5-10 | 30 | 245×25-28-30-34-40
| 84 |
| 18×2.3-4-5 | 20 | 89×4.5-8-10 | 40 | 273×7-9-12-15-18-20-25
| 100 |
| 20×2.5-3-5 | 17 | 95×4.5-6-8
| 50 | 273×30-35-38-40 | 50 |
| 24×2.5-3-4-5-6 | 25 | 102×4.5-5-6-10-12-14-16-20 | 80 | 299×8-12-16-20-24-28
| 60 |
| 25×2.5-3-4-5-6 | 28 | 108×4.5-5-14-18-20-22 | 75 | 299×30-32-36-38-40
| 70 |
| 28×3-3.5-4-5-6 | 30 | 114×4.5-5-6-7-8-10-12-14-18-20
| 100 | 325×8-12-14-18-38 | 120 |
| 32×3.5-4-5-6-8 | 40 | 121×4.5-5-6-7-8-10-12-14-16-20
| 102 | 325×28-32-34-38 | 75 |
| 34×4-5-6-8 | 35 | 127×4.5-5-6-7-8-10-12-14-16-20
| 95 | 351×10-16-20-25-40 | 120 |
| 36×3.5-5-6-8 | 30 | 133×4.5-6-8-12-14-16-18-20-25-30
| 120 | 355×6-18-20-25-30-40 | 45 |
| 38×4-5-6-7-8-9-10 | 33 | 140×5-6-7-8-9 | 50 | 377×8-12-15-20-24-28
| 128 |
| 39×3.5-5-8-10 | 30 | 146×4.5-6-8
| 60 | 377×30-37-40 | 60 |
| 42×3.5-4-5-6-7-8-9-10 | 35 | 152×4.5-6-8
| 60 | 402×10-20-25-30-35 | 70 |
| 45×3.5-4-5-6-7-8-9 | 40 | 159×4.5-6-10-12-14 | 80 | 406×10 | 110 |
| 48×3.5-4-5-6-7-8-9-10 | 24 | 159×16-18 | 30 | 426×10 | 97 |
| 51×3.5-4-5-6-7-8-9-10 | 60 | 168×8-25-30-35 | 130 | 450×10-20-25-34-40 | 108 |
| 56×3.5-4-5-6-7-8-9-10 | 58 | 180×8-12-16-25-30 | 105 | 480×25-30-40 | 95 |
| 57×3.5-5-6-7-8-9-10-12 | 50 | 180×32-34-38-40 | 102 | 500×10-34-40-45 | 100 |
| 60×3.5-4.5-5-6-7-8-9-12-14 | 60 | 194×6-8-25-30-40 | 140 | 510×10-25-34-40-45 | 110 |
| 63×3.5-4.5-5-6-7-8-9-10-12-14 | 40 | 203×6-7-10-15-20-25-30
| 90 | 530×20-30-40 | 140 |
| 68×4-4.5-5-6-7-8-9-10-12-14-16 | 35 | 203×32-36-40 | 70 | 560-720*6-10-24-45 | |
| 70×4-4.5-5-6-7-8-9-10-12-15-16 | 40 | 219×6-8-12-16-18-20-25
| 110 | | |
TP304 Stainless Steel Welded Pipe
Is there any guarantee of SINO Stainless Steel?
Factory supply inspection before shipment,sampling test( cut one
piece for you to test in our lab or some other lab like SGS which
you trust so much) ,
you also could inspection of loading on the forwarder warehouse or
our Mill.
Packing
