Home > Stainless Steel Welded Tube >

600G 800G Stainless Steel Welded Tube CNS5802 Mirror Finish Surface

Product Categories

Wuxi Sino Yuan Science And Technology Co.,Ltd.

Contact Now

600G 800G Stainless Steel Welded Tube CNS5802 Mirror Finish Surface

Ask Lasest Price
Brand Name :	JISCO, LISCO, TISCO ,BAO STEEL POSCO/ ZPSS ,SINOY
Model Number :	316 / 316L / 316Ti
Certification :	ISO, SGS, TUV, ISO
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	2000 Tons
Delivery Time :	5-7 days

Add to Cart

Product Details
Company Profile

600G 800G Stainless Steel Welded Tube CNS5802 Mirror Finish Surface

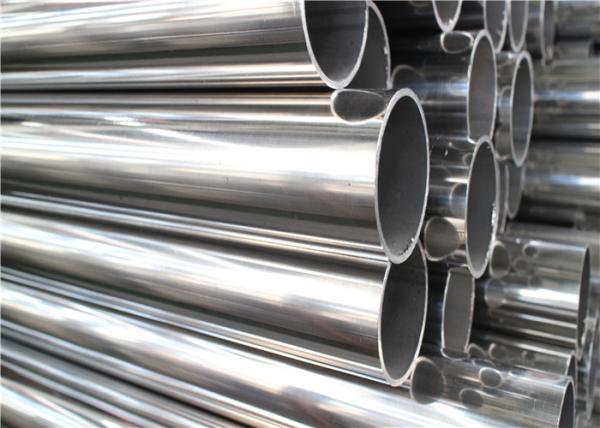

600G 800G Mirror 316 / 316L / 316Ti Stainless Steel Welded Round Tube / Pipe

Sino Stainless Steel

Sino Yuan is one of most prominent Stainless Steel Stockholder and Service Center providing Stainless Steel

to various industries in the region. Sino Yuan's stock holds the entire range of stainless steel like sheets, coils,

pipes for decoration and industry,round bars in different grades ( 304 304L 316 316L 321 310S 309S 310S

2205 904L)and sizes specially stocked to meet the local industrial demands as well as the International Mraket.

012 cr17ni12mo2 (old version 0 cr17ni12mo2)

TP316L Stainless Steel pipe Chemical composition:
C	Si	Mn	Cr	Ni	S	P
0.03	≤1.0	≤2.0	16.0~18.0	10.0~14.0	≤0.03	≤0.045
TP316L Stainless Steel pipe mechanical properties:
Tensile strength σb (MPa)	Conditions yield strength 0.2 sigma (MPa)	Elongation % (min)	Hardness
520	205	40	≤187HB ≤90HRB ≤200HV

Is there any guarantee of SINO Stainless Steel Pipe ?

Factory supply inspection before shipment,sampling test( cut one piece for you to test in our lab or some other lab like SGS which you trust so much) ,

you also could inspection of loading on the forwarder warehouse or our Mill.

Editing of Stainless Steel Welded Round TubeTechnology
A board, belt preparation
B split
C molding
D welding
E cutting
F grinding
G polishing

Specifications data of stainless Steel Welded Tube:

Size (mm)	Quantity	Size (mm)	Quantity	Size (mm)	Quantity
6-12×1.5-2.5	18	73×4-4.5-5-6-7-8-9-10-12-15	50	219×30-40	65
14×1.5-2.5-3	20	76×4-4.5-5-6-7-8-9-10-12-14	60	245×8-10-14-17-20-22	105
16×1.5-2.5-4	30	83×4.5-5-10	30	245×25-28-30-34-40	84
18×2.3-4-5	20	89×4.5-8-10	40	273×7-9-12-15-18-20-25	100
20×2.5-3-5	17	95×4.5-6-8	50	273×30-35-38-40	50
24×2.5-3-4-5-6	25	102×4.5-5-6-10-12-14-16-20	80	299×8-12-16-20-24-28	60
25×2.5-3-4-5-6	28	108×4.5-5-14-18-20-22	75	299×30-32-36-38-40	70
28×3-3.5-4-5-6	30	114×4.5-5-6-7-8-10-12-14-18-20	100	325×8-12-14-18-38	120
32×3.5-4-5-6-8	40	121×4.5-5-6-7-8-10-12-14-16-20	102	325×28-32-34-38	75
34×4-5-6-8	35	127×4.5-5-6-7-8-10-12-14-16-20	95	351×10-16-20-25-40	120
36×3.5-5-6-8	30	133×4.5-6-8-12-14-16-18-20-25-30	120	355×6-18-20-25-30-40	45
38×4-5-6-7-8-9-10	33	140×5-6-7-8-9	50	377×8-12-15-20-24-28	128
39×3.5-5-8-10	30	146×4.5-6-8	60	377×30-37-40	60
42×3.5-4-5-6-7-8-9-10	35	152×4.5-6-8	60	402×10-20-25-30-35	70
45×3.5-4-5-6-7-8-9	40	159×4.5-6-10-12-14	80	406×10	110
48×3.5-4-5-6-7-8-9-10	24	159×16-18	30	426×10	97
51×3.5-4-5-6-7-8-9-10	60	168×8-25-30-35	130	450×10-20-25-34-40	108
56×3.5-4-5-6-7-8-9-10	58	180×8-12-16-25-30	105	480×25-30-40	95
57×3.5-5-6-7-8-9-10-12	50	180×32-34-38-40	102	500×10-34-40-45	100
60×3.5-4.5-5-6-7-8-9-12-14	60	194×6-8-25-30-40	140	510×10-25-34-40-45	110
63×3.5-4.5-5-6-7-8-9-10-12-14	40	203×6-7-10-15-20-25-30	90	530×20-30-40	140
68×4-4.5-5-6-7-8-9-10-12-14-16	35	203×32-36-40	70	560-720*6-10-24-45
70×4-4.5-5-6-7-8-9-10-12-15-16	40	219×6-8-12-16-18-20-25	110

What Is Best Pacakge of 316 / 316L / 316Ti Stainless Steel Welded Round Tube / Pipe ?

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
- Waterproof paper reinforcement of steel strip
- Kraft paper
- Carton boxes
- Wooden pallets
- Wooden boxes
- Wooden crates
Marking service is available to you.
Surface is sprayed with code.
We have our own machines to help our partner. Can spray grade, size, and standard.
1. Drop on demand
2. Continue ink jet printer
3. Laser printer
