    Structural Stainless Steel Angle Trim High Hardness Heat Resisting Excellent Formability

    Ask Lasest Price
    Brand Name : SINOY
    Model Number : 316L
    Certification : SGS,TUV, ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 800Tons per month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Structural Stainless Steel Angle Trim High Hardness Heat Resisting Excellent Formability

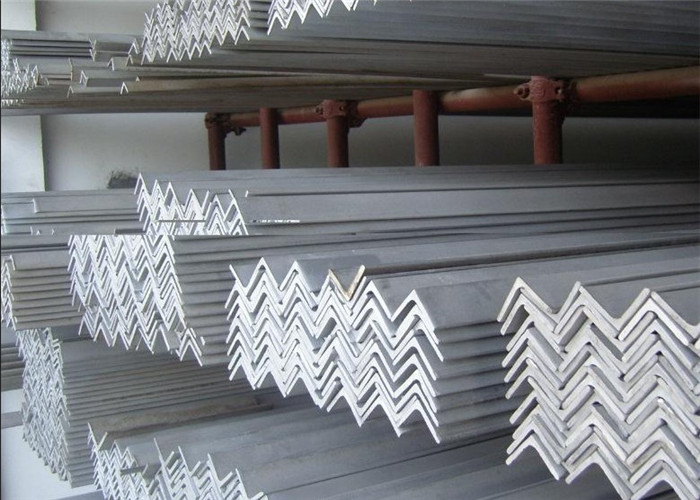

    316L Hot Rolled Stainless Steel Angle Bar 25*25*3mm Angle Steel


    Category of stainless steel angle bar:
    It can be divided into two kinds: equal-edge stainless steel angle steel and unequal-edge stainless steel angle steel. The unequal-edge stainless steel angle steel can be divided into unequal-edge equal-thickness and unequal-edge unequal-thickness.


    Standard Size and Unit Weight of Angle bar / Angle steel

    A×B
      mm
    Thickness (mm)
    345678910
    20×200.8941.131.38
    25×251.131.451.772.06
    30×301.371.772.172.53
    35×351.612.092.573.01
    40×401.852.412.973.49
    45×452.122.763.404.00
    50×502.363.073.794.465.135.766.427.06
    60×604.585.426.247.03
    63×635.035.956.847.718.609.48
    70×705.426.427.398.349.3110.3
    75×755.826.897.958.9710.011.1
    80×807.378.509.6110.711.8
    90×908.339.6511.9012.213.4
    100×1009.2810.812.2013.615.0

    CHEMICAL COMPOSITION 316L stainless steel angle bar

    o22Cr17Ni12Mo2 (00Cr17Ni14Mo2)


    316L Chemical composition:
    CSiMnCrNiSP
    0.03≤1.0≤2.016.0~18.010.0~14.0≤0.03≤0.045
    mechanical properties:
    Tensile strength σb (MPa)Conditions yield strength 0.2 sigma (MPa)Elongation % (min)Hardness
    52020540≤187HB ≤90HRB ≤200HV

    How Can You Ship Goods Like Heavy welded Stainless Steel Angle bar. What Is Best Pacakge?

    • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
    • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
      • Waterproof paper reinforcement of steel strip
      • Kraft paper
      • Carton boxes
      • Wooden pallets
      • Wooden boxes
      • Wooden crates

    Mark

    • We mark all our products with entire details which are connected to the test certificates we provide.
    • Surface is sprayed with code.
    • We have our own machines to help our partner. Can spray grade, size, and standard.

      . Drop on demand

      . Continue ink jet printer

      . Laser printer

    • 1) We can process to different finish you request.(NO.1 , 2B,BA ,Hairline, No.4,Brush,Mirror,Golden Mirror,color stainless steel.

    • 2) 800 Tons/Month, high production capability will short your wait time.

    • 3) MTC provided before shipment after order.

    • 4) First quality with reasonable price.Second quality lower than Stainless steel market

    • 5) Buyer's Specification Accepted.Laser cutting of stainless steel,Weled of stainless steel pipe,surface treatment of stainless steel

    • 6) Some regular Stainless steel sheet/coil/pipe/bar for client urgent request.
